HONEYWELL FLAME DETECTOR
95,000,000 تومان
90,000,000 تومان

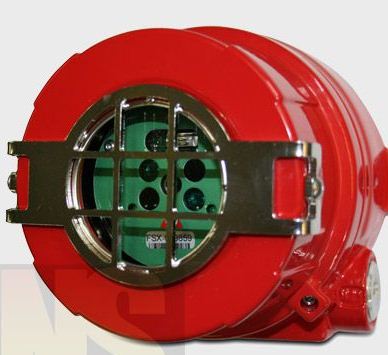

Fire Sentry FS20X
Electro-Optical Advanced Flame Detector
Integrated Sensors
Multi-Spectrum (UV / Dual IR / VIS)
Sensitivity
Very High, High, Medium and Low (selectable switch)
Response Time
3-5 Seconds to 1 sq. ft. fire at 100 ft.
3-10 Seconds to 1 sq. ft. fire at 200 ft.
Spectral Sensitivity
Ultraviolet: 185 - 260 nanometers
Near Band IR: 0.7 – 1.1 microns
Wide Band IR: 1.1 – 3.5 microns
Visible: 400 – 700 nanometers
Power Consumption
Operating: 83 mA @ 24 Vdc nominal
Alarm: 133 mA @ 24 Vdc nominal
Heater: 155 mA – additional
Output Signals
Relay contacts: SPDT rating 1 Amp @ 24 Vdc
Analoq output: 0-20 mA stepped - Source/Sink
Visual Indications
Blue LED: Power
Red LED: Alarm
Yellow LED: Fault
Temperature Range
Operating: -40 to +185ºF (-40 to +85ºC)
Storage: -67 to +230ºF (-55 to +110ºC)
Certifications
FM: Class I, Div. 1&2; Class II, Div. 1&2; Class III
ATEX: II 2 G D; Ex d IIC T4, T5, T6
CE: Complies with EN6100-6-4 & EN50130-4
