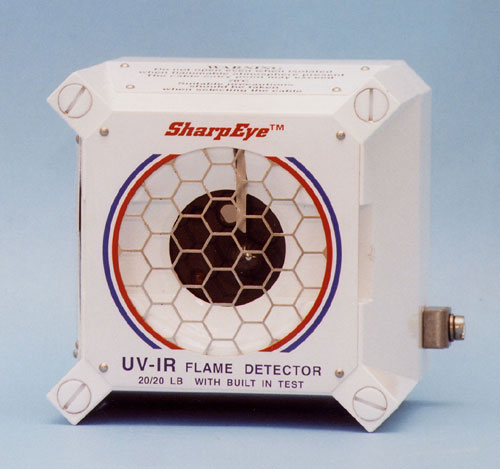

SPECTREX FLAME DETECTOR
90,000,000 تومان
85,000,000 تومان
SharpEye, 20-20LB
Integrated Sensors
Ultraviolet / Infrared (UV/IR)
Operating Voltage
18-32 Vdc
Response Time
Typical 5 sec.
Field of View
90” horizontal, 90” vertical
Spectral Response
UltraViolet: 0.185 - 0.260 microns.
InfraRed: 2.5 - 3 microns.
Temperature Range
Operation: -40°c ~ +70°c
Storage: -55°c ~ +85°c
Power Consumption
Stand-by: Max. 100mA
Alarm: Max. 150mA
Electrical Connection
NPT: 2 x (3/4")
ISO: 2 x (M25 x 1.5mm)
Output Signals
Relay: Two SPDT contacts, Fault (NC) and Alarm (NO)
Analog: 4~20mA source configuration
Ingress Protection
IP66 and IP67 per En60529
NEMA 250-6P
Hazardous Area Approvals
ATEX: EX II 2G, EExd IIB, EExde IIB
FM/CSA: Class I Div. 1 ; Class II Div. 1
GOST R: Exd IIB T5
Weight
Aluminum: 8.1Lb (3.7 Kg)
St.St 316L: 14.3Lb (6.5 Kg)
For more information click here www.spectrex-inc.com
